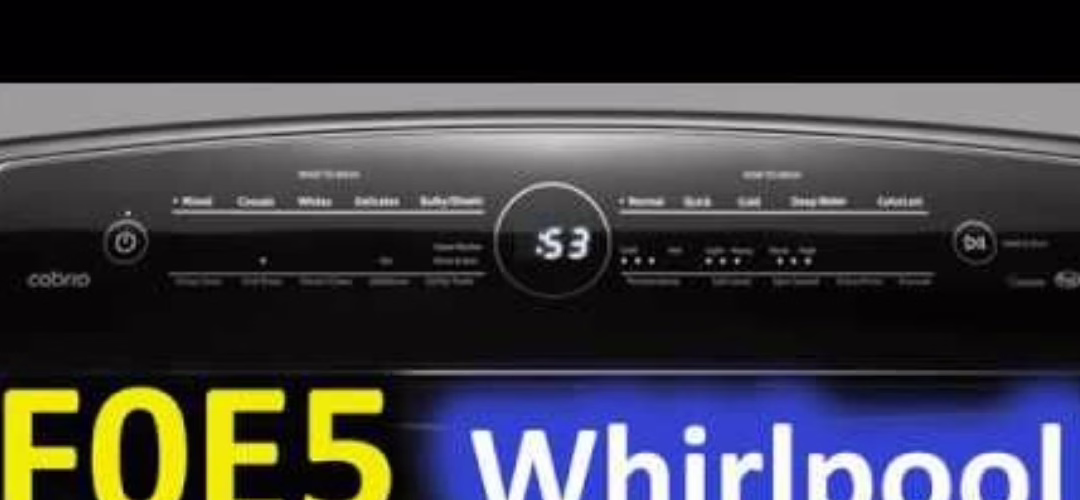

Whirlpool Washing Machine F0 E5 Error Repair
The F0 E5 code is one of the more frustrating errors a Whirlpool washing machine can show, mostly because it stops the cycle completely and the fix isn’t always obvious. It signals an off-balance drum, but “off balance” can mean anything from a heavy duvet that’s clumped to one side to a worn suspension rod that’s been slowly failing for months. The difference between those two matters because one resolves itself with a quick redistribution of the load, and the other needs a part replaced before the same error keeps coming back every single cycle.
This guide covers what actually triggers the F0 E5 code, what you can try yourself, and what our washing machine repair service does when the fault goes deeper than the load inside the drum.
What the F0 E5 Code Is Actually Telling You
Whirlpool machines continuously monitor drum movement throughout a cycle using vibration sensors and motor load readings. During the spin phase, the machine expects the drum to rotate within a defined range of movement — any more than that and it flags an imbalance and stops rather than letting the drum shake itself (and everything around it) to pieces.
F0 E5 specifically means the machine tried to spin, detected that the drum movement was outside that acceptable range, and cut the cycle to protect itself. The code itself is a symptom description rather than a root cause, which is why the actual fix depends entirely on what’s making the drum move that way.
The Real Causes — From Simple to Mechanical
Load Distribution Inside the Drum
Large items — bedsheets, thick towels, duvet covers, jeans — have a tendency to ball up on one side of the drum during the wash phase, so by the time spin starts, all the weight is concentrated on one side. The drum tilts as it tries to accelerate, the vibration sensors pick it up almost immediately, and the machine stops. This is the most common trigger for the error and the easiest to fix, since redistributing the laundry by hand and restarting the cycle is all that’s needed.
Washing a single large heavy item on its own amplifies this effect significantly — a thick blanket alone in the drum will almost always trigger F0 E5 because there’s nothing to counterbalance it. Adding a few smaller items creates enough distributed mass to allow the drum to spin more evenly.
The Machine Isn’t Sitting Level
If the washing machine isn’t level, the drum effectively starts every spin cycle already slightly off-centre. Even a small tilt — a few millimetres difference between two feet — is enough to make the machine sensitive to imbalance that a properly levelled unit would handle without triggering the error. Checking this is worth doing if the error started appearing after the machine was moved, after flooring was changed, or if it rocks when you push a corner.
All four feet need to be in contact with the floor and the machine should sit completely still when you push it diagonally from each corner. Adjustable feet are turned by hand — raise or lower until the machine doesn’t rock at all.
Worn Suspension Rods or Shock Absorbers
This is where the error stops being something you can fix yourself. Top-load Whirlpool machines use suspension rods — typically four — that connect the drum assembly to the outer cabinet and absorb the movement during spin. Front-load models use hydraulic shock absorbers that do the same job. Both wear gradually over years of use, and once they lose their dampening ability, even a reasonably balanced load creates too much movement for the sensors to accept.
The tell-tale sign is a machine that shakes noticeably during spin even with a small, well-distributed load — the kind of load it would have handled perfectly a year ago. If the drum itself sags or feels loose when you push it by hand with the machine empty, that confirms the suspension has gone.
Worn Drum Bearings
The bearings supporting the drum shaft wear down over time, especially in machines that have seen heavy use. Once bearing play develops, the drum doesn’t run true anymore — it wobbles on its axis, and the vibration sensors can’t distinguish this from a load imbalance. A drum with worn bearings often produces a grinding or rumbling noise that gets louder during spin, which is a useful distinguishing sign from a pure suspension rod issue.
Loose Internal Mounting or Frame Components
Motor mounts, counterweights, and tub support components can loosen over time from vibration. Any of these, if loose enough, creates unpredictable movement during spin that triggers the balance sensor. This is less common than suspension rod wear but does happen on machines that have been running with a vibration issue for a long time, since the repeated shaking gradually loosens what was once tight.
What You Can Try Before Calling a Technician
If the error has just started appearing and wasn’t a recurring problem before, three things are worth checking first:
- Open the drum, pull the laundry apart by hand, and redistribute it as evenly as possible around the drum before restarting the spin. If a single large item is in there alone, add a few smaller items to create balanced mass.
- Check the machine’s levelling by pushing each corner and confirming it doesn’t rock. Adjust the feet until it sits completely still.
- Check that the machine is on a firm surface — washing machines on soft or springy flooring have less stability and trigger balance errors more easily.
If the error clears and doesn’t come back, one of these was the cause. If it returns consistently even with properly distributed loads on a level machine, the fault is mechanical and needs a technician.
Why Running It Anyway Makes Things Worse
Once it’s clear the error is coming from worn suspension or bearings rather than load distribution, continuing to run the machine is genuinely damaging. Every spin cycle where the drum is shaking outside its design limits puts stress on the motor shaft, the tub bearings (if they weren’t the original problem), the outer drum support, and the control board sensors. What starts as a suspension rod replacement becomes a motor shaft job if the machine runs long enough in that condition. Catching it early keeps the repair cost substantially lower than leaving it and hoping it resolves itself.
How We Diagnose and Fix the F0 E5 Error
When a Whirlpool washing machine comes in for F0 E5, we don’t start by replacing the most common part — we start by running the machine to observe where the movement is coming from.
The diagnostic runs in two stages: first with an empty drum to assess whether the machine has baseline stability issues (which indicates suspension or bearing faults), then with a balanced test load to see how it behaves under normal operating conditions. This usually confirms which component is responsible before we open anything.
From there the repair is targeted — suspension rods if they’ve lost their spring tension and aren’t holding the drum properly, shock absorbers if it’s a front-loader with dampener failure, bearings if the drum has measurable play on its shaft, or a combination if more than one component has worn simultaneously, which is common when a machine has been running with vibration for an extended period.
Whirlpool machines require a calibration cycle after mechanical repairs to this kind of — the machine’s balance sensors need to be reset with the new components in place so they’re reading against correct baseline values. We run this before returning the machine rather than leaving it for the customer to do, since a machine that isn’t properly calibrated after suspension work will often still throw balance errors even though the mechanical fault has been fixed.
Always Nearby — Our 60+ Vehicle Fleet Across Dubai
A washing machine that won’t complete a spin cycle is genuinely disruptive in a way that most other appliance faults aren’t, particularly for households with children or people doing regular laundry. Dubai Repairs runs more than 60 fully equipped service vehicles positioned across Dubai at all times — not called in from a central depot when a job is booked, but already in position across the city so same-day or next-day attendance is realistic for most areas rather than an optimistic promise.
Each vehicle carries common Whirlpool-compatible suspension rods, shock absorbers, and testing equipment for this type of fault, which means the diagnostic and repair can usually be completed in a single visit rather than requiring a return trip once parts are sourced. Whether you’re in Jumeirah, Al Barsha, Mirdif, Business Bay, or further out, a technician with the right parts is typically close rather than an hour away.
Signs That Mean Don’t Wait
- The machine moves across the floor or bangs against walls during spin
- A grinding or rumbling sound from the drum that gets worse under load
- The drum visibly sags to one side when viewed from the door or lid
- Water is leaking during or after the spin cycle
- The error appears on every cycle regardless of load size
Any of these alongside the F0 E5 code indicates the fault has progressed beyond load distribution and is mechanical.
Preventing the Error From Coming Back
- Don’t fill the drum to capacity — load should be roughly three-quarters full, with enough room for clothes to move around rather than packed solid.
- Avoid washing single heavy items alone; pair a duvet with a few towels to distribute weight more evenly.
- Check machine levelling if it’s been moved or if flooring around it has changed.
- Book a general service check every year or two — suspension rods wear gradually and catching them before they trigger problems is cheaper than replacing them reactively.
Book Your Whirlpool F0 E5 Error Repair in Dubai
If the error keeps coming back or your machine is shaking in a way that clearly isn’t a load distribution issue, contact Dubai Repairs and we’ll arrange a visit — typically the same day for most areas of Dubai.
Frequently Asked Questions
Is the F0 E5 error always a mechanical fault?
Not always. A clumped load, an overloaded drum, or an unlevel machine can all trigger it. But if redistributing the laundry and relevelling the machine doesn’t stop it recurring, the cause is mechanical — typically worn suspension rods, shock absorbers, or bearings.
Can I keep using the machine while waiting for a repair?
Running the machine with a confirmed mechanical balance fault accelerates damage to the motor, bearings, and drum support. If the error is persistent and clearly mechanical, it’s better to wait for the repair rather than running more cycles through it.
What’s the difference between suspension rods and shock absorbers?
Suspension rods are used in top-load Whirlpool washers — they hang the drum from four corners inside the cabinet using spring tension. Front-load models use hydraulic shock absorbers at the base of the drum instead. Both serve the same purpose of controlling drum movement during spin.
Will replacing suspension rods fix the error permanently?
If worn suspension rods are the root cause, yes. Once the rods are replaced and the machine is calibrated, the drum returns to its correct operating range and the error stops triggering.
How long does the repair typically take?
Suspension rod and shock absorber replacement, including the diagnostic run and calibration cycle, is usually completed within one to two hours in a single visit when the correct parts are available.
Do you repair both top-load and front-load Whirlpool washers?
Yes, both configurations are covered. The specific components differ — suspension rods versus shock absorbers — but both are diagnosed and repaired using the same methodology.
Can this error damage the machine if ignored?
Yes. Repeated out-of-balance spin cycles put progressive stress on the motor shaft, tub bearings, outer drum, and control sensors. The longer it runs with a mechanical balance fault, the more components are at risk of secondary damage.
Do you carry Whirlpool-compatible parts in the service vehicle?
Common Whirlpool suspension and damping components are carried as standard, which is why most F0 E5 repairs are completed in a single visit without a separate parts-sourcing delay.
